Inlet & Outlet Duct Diameter: 305mm / 12 inches
Power Supply: 110v / 50Hz / 16 amp
Running current: 3.4 amp
Weight: 21kg
Airflow: 3700m3/hr or 2100cfm
Compact, portable, and extremely robust axial fans ideal for moving a large volume of air through ductwork for cooling, fume removal, and also general blowing and exhausting of air. These units may be connected in a series at approx. 30m intervals to achieve very long duct runs.
These fans are also good for cooling applications - either extracting warm air or blowing in cool ambient air; their small size (300mm diameter) and relative light weight means they can easily be suspended.
They are particularly effective in generating bulk air movement in enclosures and tanks because they produce a "jet" of air from the discharge side of the fan.
These axial fans may also be connected in series at 30m - 40m intervals to achieve very long ducted runs.

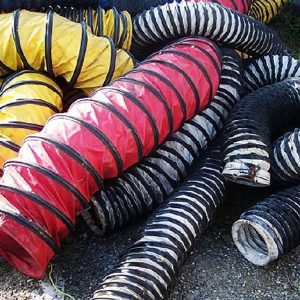

We can supply flexible trunking as part of the hire-standard ducting: 310mm diameter x 8 metre lengths, easy-coupling using capstan connectors (supplied with all hire ducting).
This is a "Roll-up, Plug-in, Switch-on" product.
